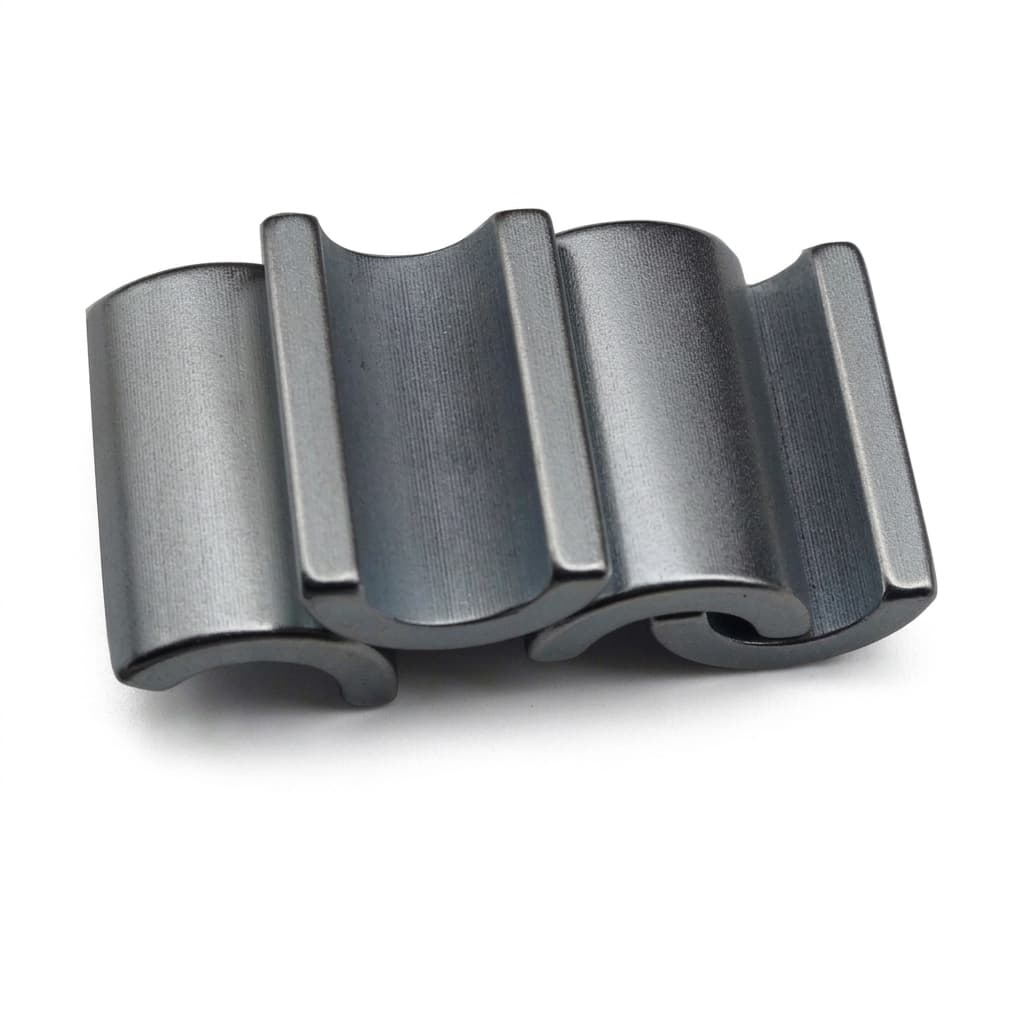

The Hidden Cost of Halbach Arrays: Assembly Complexities and Supplier Selection

For many engineering teams, the Halbach array feels like a magic bullet. By arranging permanent magnets in a specific, continuously rotating pattern of magnetization, you can dramatically augment the magnetic field on one working side while virtually canceling the field on the opposite side. This "one-sided flux" is incredibly valuable for applications ranging from high-efficiency particle accelerators and medical MRI machines to lightweight aerospace rotors and advanced linear motors.

The design is brilliant on paper. But when the procurement team sends out the RFQ (Request for Quote) for a Halbach assembly, the returned pricing often induces sticker shock. Why does a custom Halbach array cost significantly more than a standard magnetic assembly with the exact same volume of Neodymium (NdFeB) or Samarium Cobalt (SmCo)?

The answer lies far beyond the raw material index. The true cost drivers of a Halbach array are the extreme physical complexities of assembly, the non-recurring engineering (NRE) required for custom tooling, the brutal tolerance stack-ups, and the sheer safety hazards of forcing powerful repelling forces into close proximity.

In this comprehensive guide, we will break down the hidden costs of Halbach arrays, how to choose the right mechanical retention strategy, and provide a strict checklist for evaluating whether a magnet supplier is actually capable of manufacturing your design safely and reliably.

Scope note (published July 23, 2026): This guide is written for global OEM procurement and engineering teams evaluating custom Halbach arrays for motors, sensors, medical equipment, accelerator hardware, aerospace systems, and vacuum equipment. It explains manufacturability and supplier-selection risk, not final magnetic-field sizing. Validate every design with application-specific FEA, mechanical stress review, adhesive qualification, and local safety procedures before purchase order release.

If your Halbach concept is headed into a rotating machine, first compare the retention and inspection expectations for motor magnetic assemblies. If bonding is still the open risk, review the separate magnet bonding adhesives guide before freezing the drawing package.

---

1. The Physics of the Assembly Cost

To understand the cost, you must first understand the physics of the assembly process. In a standard magnetic circuit, magnets are typically placed on a steel yoke (backing plate) that acts as a return path. The magnets naturally want to attract to the steel, and while there are repulsive forces between adjacent magnets, the steel helps manage the flux.

In a Halbach array, there is often no heavy steel backing. Instead, the magnets themselves are forced into orientations where they are actively repelling each other with tremendous force.

The "Snap Together" Hazard

Neodymium magnets are the strongest permanent magnets commercially available. They are also sintered ceramics, meaning they are incredibly brittle. When you attempt to push two NdFeB segments together with their like-poles facing each other (or at a 90-degree angle as required by the Halbach sequence), the repulsive force will actively try to push the magnets apart or twist them out of alignment.

If control is lost for even a fraction of a second, the magnets will violently flip and snap together in an attractive state. The impact velocity is often high enough to shatter the sintered material, turning an expensive magnet segment into useless, razor-sharp shrapnel.

Because of these violent forces, human hands cannot be used to simply glue segments together. The labor rate associated with Halbach assemblies is exponentially higher than standard assemblies due to the time, care, and safety protocols required.

---

2. NRE and Custom Non-Magnetic Jigs

Every unique Halbach array requires bespoke assembly tooling. This Non-Recurring Engineering (NRE) cost is often the biggest shock to buyers quoting low-volume prototype runs.

To build a Halbach array safely, the supplier must machine massive, rigid assembly jigs. These jigs must be made of non-magnetic materials—typically high-grade aluminum, brass, or specialized rigid polymers (like PEEK or Delrin)—to prevent the magnets from sticking to the tool itself.

The jig must be designed with individual pockets or slots for each segment. It requires precision hydraulic or heavy-duty mechanical screw presses to gradually force the magnets into their final position against their own repulsive will. Because the forces can reach hundreds or even thousands of pounds in larger arrays, the structural integrity of these non-magnetic jigs must be immense.

If your RFQ is for 10 pieces of a large, high-grade NdFeB Halbach rotor, the cost of designing and machining the aluminum assembly jig might be significantly higher than the cost of the 10 magnets combined. This tooling cost is unavoidable; a supplier attempting to build a Halbach array without proper tooling is a severe safety risk and will inevitably deliver misaligned, structurally compromised assemblies.

---

3. The Nightmare of Tolerance Stack-Up

In engineering, dimensional tolerances stack up. If you have a linear Halbach array composed of 20 magnet segments, and each segment has a dimensional tolerance of ±0.05 mm, the total length of the array could vary by ±1.0 mm.

In a magnetic circuit, a 1.0 mm deviation is catastrophic. It introduces air gaps between segments that bleed magnetic flux and drastically reduce the efficiency of the array. The precise 90-degree or 45-degree rotational shift from one segment to the next is what generates the augmented field; if segments do not seat perfectly flush against one another, the field becomes distorted, producing "stray fields" or harmonics that can ruin high-precision applications like voice coil motors or sensors.

Two Approaches to Tolerances

Magnet manufacturers generally take one of two approaches to solve the Halbach tolerance issue, both of which add cost:

1. Ultra-Precision Pre-Machining: The individual magnet blocks are ground to incredibly tight tolerances (e.g., ±0.02 mm) before coating and assembly. This requires slower machining speeds, higher fallout rates (scrap), and extremely strict coating thickness controls (since the Nickel-Copper-Nickel plating adds variable thickness).
2. Post-Assembly Grinding: The array is assembled with slightly oversized magnets, heavily encapsulated in epoxy, and then the entire assembled array is ground down to the final dimension. This ensures a perfect final outer diameter (OD) or outer dimension, but grinding a fully magnetized, fully assembled NdFeB array is hazardous. The heat generated during grinding can cause localized demagnetization, and the magnetic chips/dust created will instantly stick to the array, requiring intense, specialized cleaning processes.

---

4. Adhesives, Curing, and Structural Integrity

Halbach arrays exist in a permanent state of internal stress. The magnets are constantly trying to repel each other and break apart. Over a 10 or 20-year service life, encountering thermal cycling, vibration, and mechanical shock, the retention system must not fail. If an adhesive joint fails inside a high-speed Halbach rotor, the result is instantaneous, catastrophic destruction of the machine.

Adhesive Selection

Cyanoacrylates (super glues) are far too brittle for structural Halbach assemblies. Suppliers must use high-strength, toughened structural epoxies or specialized methacrylates.

The application process is critical. The surfaces of the coated magnets must be perfectly degreased (often using plasma or chemical etching). The epoxy must be applied uniformly to avoid creating adhesive-filled "air gaps" that disrupt the magnetic circuit.

Furthermore, many industrial epoxies require elevated temperatures to cure optimally. Curing an assembled Halbach array in an oven introduces another risk: as temperature rises, the coercivity (resistance to demagnetization) of NdFeB drops. The massive repulsive fields the magnets are exerting on each other can cause internal, irreversible demagnetization if the curing temperature gets too close to the magnet's maximum operating temperature limit. Suppliers must use low-temperature cure epoxies or strictly controlled thermal profiles.

Outgassing in Specialized Environments

If your Halbach array is going into a vacuum chamber (e.g., semiconductor manufacturing, particle accelerators) or a sensitive optical assembly, standard epoxies will "outgas"—releasing volatile organic compounds (VOCs) that contaminate the environment. In these cases, ultra-expensive, NASA-grade low-outgassing epoxies must be specified, further driving up material and processing costs.

---

5. Structural Retention Strategies Comparison

Depending on your application's severity, epoxy alone may not be enough. Engineers must evaluate total mechanical retention strategies.

Rule of Thumb for Procurement: If a supplier quotes a Halbach array at a price that looks like a standard magnet bill-of-materials, they are likely planning to just glue them together on a workbench. This is a massive red flag. Treat the percentages above as RFQ-screening ranges, not universal price rules; final cost depends on magnet grade, segment count, stored energy, inspection method, retention validation, and annual volume.

---

6. Supplier Qualification Checklist for Halbach Assemblies

Before awarding a PO for a Halbach array, procurement and engineering teams should jointly audit the supplier. A standard ISO9001 certificate does not prove capability for this specific, dangerous assembly type.

Use this checklist during your supplier evaluation:

• Simulation Capability: Does the supplier use FEA/BEM software (like COMSOL, ANSYS Maxwell, or EMWorks) to model the repulsive forces prior to tool design?
• Tooling Ownership: Does the supplier design and machine their non-magnetic assembly jigs in-house, or is it outsourced? (In-house allows for rapid iteration if the initial pressing strategy fails).
• Adhesive Traceability: Can the supplier provide the MSDS and technical data sheet for the structural epoxy? Do they have controlled-environment curing stations?
• Surface Preparation: What is their documented standard operating procedure (SOP) for degreasing and surface prep prior to bonding coated NdFeB?
• Thermal Management: How do they verify that oven-curing the epoxy will not cause self-demagnetization from the array's internal repulsive fields?
• Worker Safety: Do they use hydraulic presses and protective shielding for large assemblies, or are they relying on manual labor? (Manual assembly of large Halbach arrays is a severe injury risk).
• Field Verification: How do they map the final magnetic field? (They should use a 3-axis Hall probe scanner to verify the augmented field matches the theoretical model).

---

7. Sourcing Considerations and Lead Times

Because of the extreme NRE, tooling design, and specialized adhesives, buyers must adjust their lead time expectations.

A standard custom magnet might take 4-5 weeks to produce. A custom Halbach array prototype usually requires 8-12 weeks. The first 4 weeks are often consumed entirely by engineering: running 3D magnetic simulations to calculate the exact repulsive forces, designing the aluminum safety jigs, and machining the jigs before the first magnet is even sintered.

If you are transitioning a Halbach prototype into mass production, demand a clear Quality Control Plan (QCP) that outlines how the supplier will maintain dimensional tolerances across thousands of units without the stack-up destroying the magnetic yield.

For non-Halbach interference-fit concepts, the press-fit magnet fit checker can help screen housing/material assumptions before engineering review. Do not use that shortcut as a substitute for Halbach fixture-force modeling.

---

8. Frequently Asked Questions (FAQ)

Can we use Samarium Cobalt (SmCo) instead of NdFeB for a Halbach array?

Yes. SmCo is often used in high-temperature or highly corrosive environments. However, SmCo is even more brittle than NdFeB. The risk of shattering during the forced-assembly process is significantly higher, meaning scrap rates and unit costs will increase.

Why can't we just magnetize the array after it is assembled?

"Post-assembly magnetization" is the holy grail of magnetic assemblies, but it is physically impossible for a true discrete Halbach array. A Halbach array requires adjacent segments to have magnetization vectors at 90-degree or 45-degree angles to each other. A magnetizing coil can only pulse a unidirectional field. Therefore, the segments must be fully magnetized individually before they are forced together into the array.

Is a Halbach array always the best solution for maximizing flux?

No. If you have the space and weight allowance, simply using larger magnets with a thick, low-carbon steel back-iron is often far cheaper and mechanically safer than a Halbach array. Halbach arrays are economically justified primarily when strict weight limits exist (e.g., aerospace, robotics) or when a steel back-iron would cause unacceptable eddy current losses in a high-speed dynamic system.

---

9. Sources and References

1. COMSOL Application Gallery: Static field modeling of a Halbach rotor for magnetic simulation workflow context. Static Field Modeling of a Halbach Rotor
2. Blümler and Soltner: Practical construction concepts and design trade-offs for Halbach magnet arrays. Practical Concepts for Design, Construction and Application of Halbach Magnets in Chemistry and Beyond
3. NASA Materials and Processes Technical Information System: Low-outgassing material screening for vacuum and contamination-sensitive environments. NASA Outgassing Data for Selecting Spacecraft Materials
4. Dura Magnetics: Safety guidance on handling powerful neodymium magnets and avoiding impact/shatter hazards. Neodymium Magnet Safety and Handling

---
