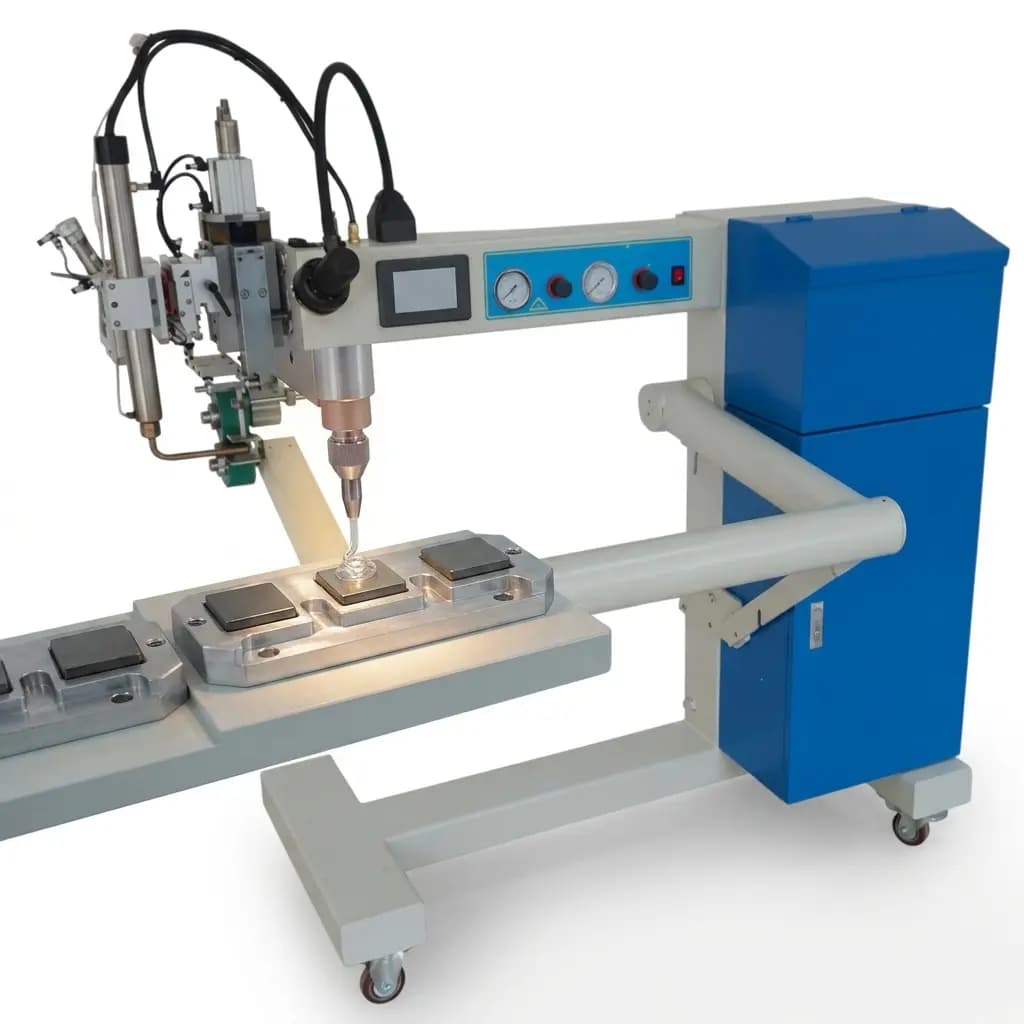

Adhesives for Bonding Magnets in Electric Motors
Select the optimal structural adhesives for bonding magnets in electric motors, attaching Neodymium and other permanent magnets to housings and rotors.
Executive Summary: Magnet Bonding
1. Epoxy is the Standard
2-part structural epoxies offer the best balance of high shear strength, temperature resistance, and gap-filling capabilities for permanent magnet motor assemblies.Evidence basis reviewed July 27, 2026: ASTM D1002-style shear screening plus representative epoxy supplier TDS.
2. Thermal Demagnetization Risk
Heat-curing adhesives accelerate production, but the cure temperature must never exceed the magnet's maximum operating temperature (e.g., 80°C for standard N-grade Neodymium).Treat the exact magnet grade as a required input before approving any heat-cure schedule.
3. Surface Preparation
Most neodymium magnets are Ni-Cu-Ni plated, creating a low-energy surface. Proper degreasing is essential. Warning: Mechanical abrasion (sanding) risks breaching the thin 10-25µm plating, exposing the core to rapid corrosion. Plasma treatment is preferred for critical applications.
4. Emerging Film & High-Temp Options
Advanced motor designs may screen heat-rated epoxies and b-staged adhesive films to reduce liquid metering, tighten air gap control, and handle higher service temperatures.Treat these as candidate formats until the exact supplier TDS and production-part validation support the temperature and strength targets.
Evidence Basis and Limits
Sources reviewed July 27, 2026. The selector uses these sources to choose an adhesive family, not to certify a finished assembly. Final approval still requires testing on the exact magnet coating, substrate, bond-line thickness, and cure profile.
| Source | What it Supports | Decision Boundary |
|---|---|---|
| ASTM D1002 | Defines the common single-lap metal coupon method used to compare apparent shear strength of structural adhesives. | Coupon shear is a screening metric; it does not prove peel, impact, thermal cycling, or plating adhesion on the finished magnet assembly. |
| 3M Scotch-Weld DP420 TDS | Representative toughened epoxy data supports using structural epoxy as the baseline for high-strength metal bonding. | Published values depend on substrate, preparation, cure schedule, temperature, and bond-line thickness. |
| Permabond magnet bonding guidance | Supports the practical split between epoxy, acrylic, cyanoacrylate, and anaerobic options for magnet bonding use cases. | Supplier guidance narrows the family; production adhesive still needs sample testing on the actual coating and substrate. |
| Henkel LOCTITE AA 326 | Shows why structural acrylics are used when fast fixture and metal/magnet bonding throughput matter. | Activator chemistry, odor, gap tolerance, and thermal limit must be checked before replacing epoxy. |
| Master Bond magnet bonding notes | Reinforces surface preparation, adhesive chemistry, and environmental durability as selection variables. | General engineering guidance; it should feed the validation plan, not bypass it. |
| NdFeB magnet temperature data | Supports treating standard neodymium magnet grades as temperature-sensitive when cure or service temperature rises. | Maximum operating temperature varies by exact grade, coating, geometry, and magnetic circuit. |
Mechanics of Magnet Bonding
Permanent magnets, particularly NdFeB and SmCo, are brittle sintered ceramics or metals. They have exceptionally high compressive strength but very low tensile and peel strength.
- •Design for Shear: Adhesive joints should be designed so that operating forces place the bond in shear rather than peel or cleavage.
- •Coefficient of Thermal Expansion (CTE): A flexible adhesive (like structural polyurethane or toughened epoxy) is required to absorb the stress caused by differing expansion rates between a steel rotor and a neodymium magnet.
- •Gap Filling: Standard design clearances (0.05mm - 0.15mm) require adhesives with proper viscosity to prevent sagging before cure.
- •Plating Adhesion Limit: The ultimate bond strength is often limited by the adhesion of the Ni-Cu-Ni plating to the sintered NdFeB core. If peel forces are too high, the adhesive will literally pull the plating off the magnet.
Adhesive Technology Comparison
| Adhesive Type | Best Used For | Typical Shear (on steel) | Cure Speed | Temp Resistance | Key Limitation |
|---|---|---|---|---|---|
| Structural Epoxy (2-Part) | Motor rotors, magnetic assemblies, high-strength needs | 15 – 25 MPa | Hours - Days (Accelerated with heat) | Up to 150°C - 200°C | Long cure time, requires precise mixing |
| Cyanoacrylate (CA) | Small magnets, tight tolerances, rapid prototyping | 10 – 15 MPa | Seconds - Minutes | Typically < 80°C | Brittle bond, very low impact resistance |
| Structural Acrylic (e.g., Loctite 326) | High impact environments, fast fixture for motor magnets | ~15 MPa | Minutes (requires activator) | Up to 120°C | Strong odor before curing, moderate temp limit |
| Anaerobic | Press-fit magnet retention, coaxial joints in metal housings | 10 – 20 MPa | Minutes - Hours | Up to 150°C | Requires active metal ions and absence of air to cure |
| Heat-Rated Epoxy (1- or 2-part) | High-stress, extreme-heat EV traction motors | Candidate TDS required | Room, heat, or oven cure | Candidate-specific | Cure profile may exceed neodymium grade limits |
| Epoxy Film or Tape (preformed bond line) | Precise bond line control, automated pick-and-place | Candidate TDS required | Thermal cure required | Candidate-specific | Only suitable for flat/simple mating geometries |
Ranges are screening bands for adhesive-family comparison. Use the candidate supplier TDS and production-part testing for final design allowables.
Application Decision Map
Use the tool recommendation as a first pass, then match the adhesive family to the real assembly scenario. The same adhesive label can behave differently when the magnet coating, substrate, and load direction change.
Steel rotor with NdFeB arc magnets
Best fit: Toughened 2-part epoxy
Prioritizes shear strength, gap filling, and vibration durability over the fastest fixture time.
Verify: Rotor overspeed, thermal cycling, plating adhesion, and post-cure magnetic output.
Small sensor magnet in a tight metal pocket
Best fit: CA or anaerobic adhesive
Thin bond line and fast fixture can be acceptable when loads are low and mostly shear.
Verify: Humidity aging, shock, peel sensitivity, and whether the joint ever sees gap filling.
Plastic encoder or molded housing
Best fit: Structural acrylic or polyurethane
Adds strain relief for CTE mismatch and gives primer paths for difficult plastics.
Verify: Plastic compatibility, primer need, stress cracking, and temperature softening.
High-temperature SmCo or high-grade NdFeB assembly
Best fit: Heat-rated epoxy
Service temperature is the main constraint, but the cure profile must stay below the magnet limit.
Verify: Candidate adhesive Tg, oven profile, demagnetization risk, and strength after heat aging.
Validation Plan After the Tool Result
A reliable adhesive for magnet bonding is not selected by shear strength alone. Use this sequence to turn the selector output into a production-ready test plan.
| Step | Output | Pass Signal |
|---|---|---|
| 1. Define the real joint | Magnet grade, coating, substrate alloy or resin, bond-line thickness, gap range, fixture pressure, and cure window. | Inputs match production parts, not generic steel or bare magnet coupons. |
| 2. Screen adhesive families | One epoxy baseline plus one speed or flexibility alternative when cycle time, plastic bonding, or high temperature is the driver. | Each candidate has a supplier TDS covering expected temperature and substrate family. |
| 3. Build coupons and assemblies | ASTM-style lap-shear coupons for comparison plus functional assemblies that include plating, pocket geometry, and tolerances. | Failure mode is cohesive adhesive failure or substrate failure, not clean plating lift-off. |
| 4. Age and overload | Thermal cycling, humidity/chemical exposure where relevant, vibration or drop testing, and post-aging magnetic output checks. | Bond strength and magnetic performance remain above the design safety factor. |
| 5. Lock production controls | Surface-cleaning method, mix ratio or dispense check, open time, cure confirmation, and inspection criteria. | Operator instructions can reproduce the validated bond-line thickness and cure profile. |
Have coating, substrate, temperature, and load inputs ready?
Send RFQ inputsLimits and Risk Controls
These are the common reasons a promising adhesive for magnet bonding fails after scale-up. The control action should be part of the drawing, process sheet, or inspection plan.
Peel or cleavage load
Consequence: Magnet coating can lift before adhesive shear strength is used.
Control: Redesign the pocket so operating force is shear-dominant; add a mechanical shoulder or sleeve for high-energy rotors.
Heat cure above magnet limit
Consequence: NdFeB magnets can lose magnetic output permanently.
Control: Use a room-temperature cure, lower-temperature post-cure, or a magnet grade rated for the process temperature.
Dirty or damaged plating
Consequence: The adhesive bonds to oil or weak plating instead of the magnet coating.
Control: Specify solvent cleaning, avoid aggressive abrasion on thin plating, and validate plasma or primer only on production coating.
Generic plastic substrate
Consequence: Acrylic or polyurethane may not wet PP, PE, oily molded parts, or filled resins consistently.
Control: Identify resin and additives, then run primer and aging trials before approval.
